Super HD 5MP Resolution
Swanns latest state-of-the-art surveillance technology, known as 5 Megapixels (or 5MP), is 2.4x better than 1080p Full HD. Zoom in closer with incredible clarity to license plates, facial features and clothing patterns.
Cameras

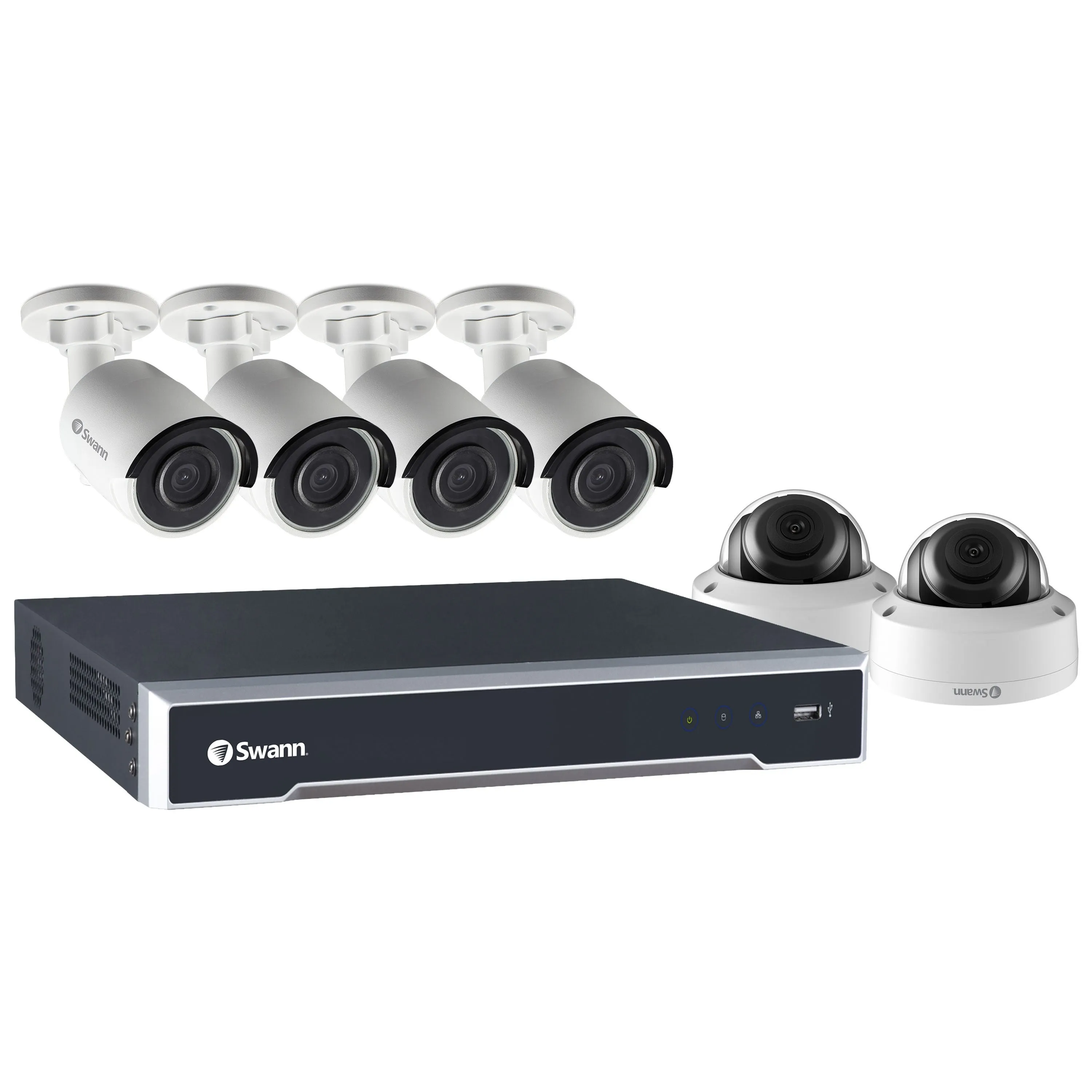

This surveillance system comes with a massive 2TB hard drive and a total of 6 cameras, with 4 x NHD-850 bullet cameras and 2 x NHD-851 dome cameras. Theyre all weatherproof built tough for the outdoors or indoors. See in the dark up to 30 metres with the cameras powerful infrared night vision.
Bullet cameras will suit those locations where you want the cameras to be quite visible and work as deterrents, while the dome cameras, due to their round shape, will suit place where you wish to have more discreet surveillance where the cameras blend in more easily to their surroundings. Enjoy easy camera installation with Power over Ethernet (PoE) as each camera is powered via Cat 5 network cable connected to the NVR.
Suitable for medium-sized businesses & detached homes for monitoring indoors & outdoors, you can expand your kit by adding up to 2 more cameras for a complete 8 channel surveillance system, including higher resolution 4K (8MP) cameras.
Convenience
With the SwannView Plus app, youll always be connected to your home or business wherever you are in the world. The app allows you to see the cameras on your phone or tablet and even search the recordings to play them back.
Keep an eye at home on everything else that matters to you, such as your kids, pets or tradespeople. If you have a business, you can always see the cashier, warehouse and check in on your staffs safety. And of course, if anything happens, youll have video evidence in 5MP Super HD.
Specification
NVR8-8000 Digital Video Recorder
Video Input
8 Channels
Video Outputs
VGA, HDMI
Display Resolution
Up to 4K (3840 x 2160 pixels)
Audio Input
1 x RCA
Audio Output
1 x RCA
Compression Format
H.265
Recording Mode
Manual / Motion / Schedule
Recording Resolution
5MP, up to 4K (8MP) with addition of 4K compatible cameras
Playback Speed
Frame Rate up to 20fps
HDD
2TB
HDD Capacity
Up to 12TB (Internal 2 x 6TB)
Network Connection
SwannLink Peer-to-Peer
Network Interface
RJ45 x 1
USB Interface
USB 2.0 x 1, USB 3.0 x 1
Computer Operating System
Windows, Mac OS
Internet Viewing
SwannView Plus
Handheld Device Supported
iOS, Android, 3G/4G Smartphones & Tablets
Dimensions
315mm x 385mm x 52mm
NHD-850 Camera
Video Quality
5MP
Viewing Angle
63
Microphone
No
Audio Range
N/A
Night Vision Distance
Up to 30m
IR Cut Filter
Yes
Indoor / Outdoor
Indoor or Outdoor, IP67 rated
Operating Temperature
-30C ~ 50C
Body Construction
Aluminium
Dimensions Camera
64mm x 155mm x 64mm
NHD-851 Camera
Video Quality
5MP
Viewing Angle
63
Microphone
No
Audio Range
N/A
Night Vision Distance
Up to 30m
IR Cut Filter
Yes
Indoor / Outdoor
Indoor or Outdoor, IP67 rated
Operating Temperature
-30C ~ 50C
Body Construction
Aluminium
Dimensions Camera (Diameter x Height)
111mm x 82.4mm
What's In the Box
- NVR8-8000 8 Channel NVR
- 2TB Hard Drive (installed)
- NHD-850 5MP Cameras x 4
- NHD-851 5MP Cameras x 2
- Cat5e Ethernet Cable x 7 (18m X 6, 1m x 1)
- HDMI Cable
- Mouse
- Power Adapter
- Mounting Screws & Plugs
- Operating Instructions
- Theft Deterrent Stickers
