Solid aluminum shell material , Double 1/4 Inch Screw Thread placement easier for multi-angels placement needs for monitors, laptop, desktop, desk and even other flat surfaces

Picture distortion

The No distortion is caused by the lens, 6-12MM lens

Solution HD Video Quality - Can record 4K/30fps video Build-in with 1/1.8" 4K raw image Sony IMX334 Exmor R CMOS image sensor.

HDMI output

3840*2160@30FPS
1920*1080@120FPS&60FPS

The resolutions listed above need to be supported by your

monitor or capture device. For example, if your monitor

does not support 4K,

The

will not appear in the resolution selection list.(Note Use a high-quality HDMI cable)

The sensor: IMX334

Image storage mode: TF card UVC

video:3840*2160P30

Exposure time: 0-30MS

Parameter Settings: Color, mirroring, gridlines, scales, etc

The system software:Youngwin OS

PC software: S-EYE2.0

ExposureAUTO / Manual

White BalanceAUTO / Manual

Power OnAuto Power On when plug ac adapter
Press camera middle button

Power OLong press camera middle button power o

LensC/CS mount

Power ModeDC 12V 1A

Screen Orientation ChangeSupport screen rotation 180 degrees and Mirroring

Zoom modeManual ( optical zoom )

Focus modeManual

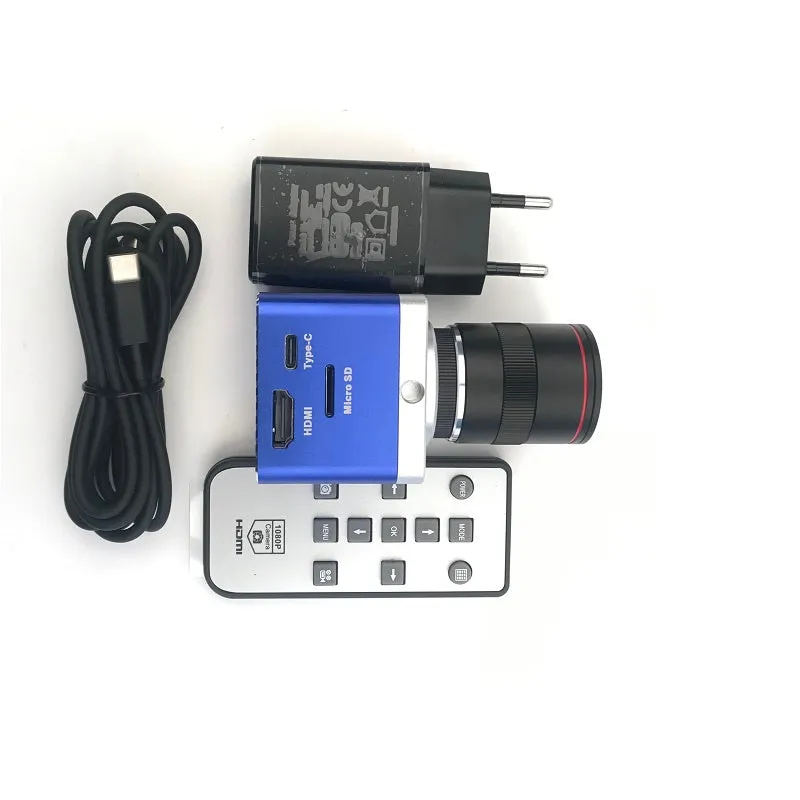

packing list

1 * 6-12mm lensHDMI 4K camera

1 * DC12V power supply

1* Remote control
