Working state overtemperature
The working heat of the camera will be relatively large, which will not affect
the normal use.
No image displayed
Try to change the HDMI output resolution
Picture distortion
The distortion is caused by the lens, 6-12MM lens
Solution IMX 334 Sensor8MP 4K CMOS Senso
HDMI output3840*2160@30FPS 1920*1080@120FPS&60FPS
The resolutions listed above need to be supported by your
monitor or capture device. For example, if your monitor
does not support 4K, The
3840*2160@30FPS1920*1080@120FPS&60FPSoption |
will not appear in the resolution selection list.(Note Use a high-quality HDMI cable)
The sensor: IMX 334
Image storage mode: TF card UVC
video:3840*2160P30
Exposure time: 0-30MS
Parameter Settings: Color, mirroring, gridlines, scales, etc
The system software:Youngwin OS
PC software: S-EYE2.0
ExposureAUTO / Manual
White BalanceAUTO / Manual
Power OnAuto Power On when plug ac adapter
Press camera middle button
Power OLong press camera middle button power o
LensC/CS mount
Power ModeDC 12V 1A
Screen Orientation ChangeSupport screen rotation 180 degrees and Mirroring
Zoom modeManual ( optical zoom )
Focus modeManual

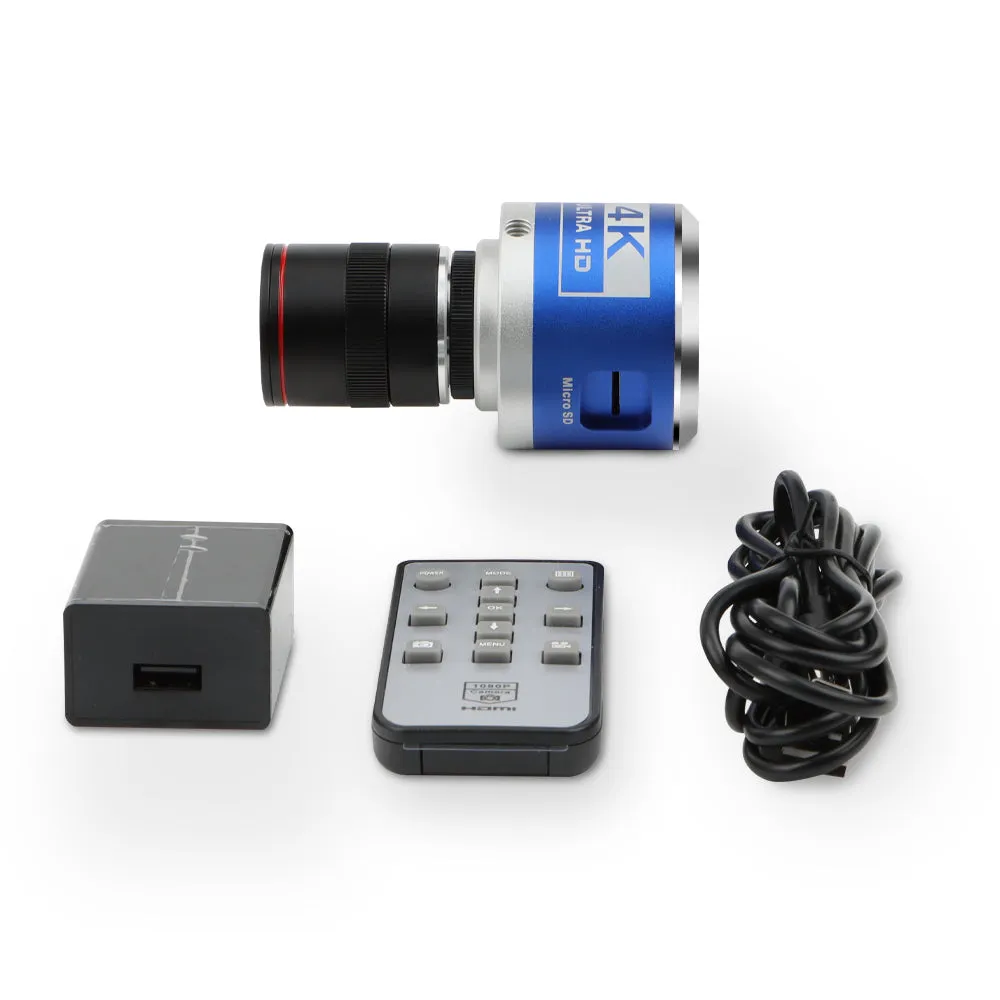

packing list
1 * 6-12mm lensHDMI camera
1 * DC12V power supply
