DEWALT MAX BATTERY PLATE KIT FOR EMBER

Our DeWalt Max battery plate kit for Freefly Ember was made for adventure filmmakers who find themselves filming in areas of the country and the world where there isn't V-mounts or gold mount batteries available. DeWalt 20v Max batteries can be found at almost any hardware store in the USA, Canada, and almost every country in the world.

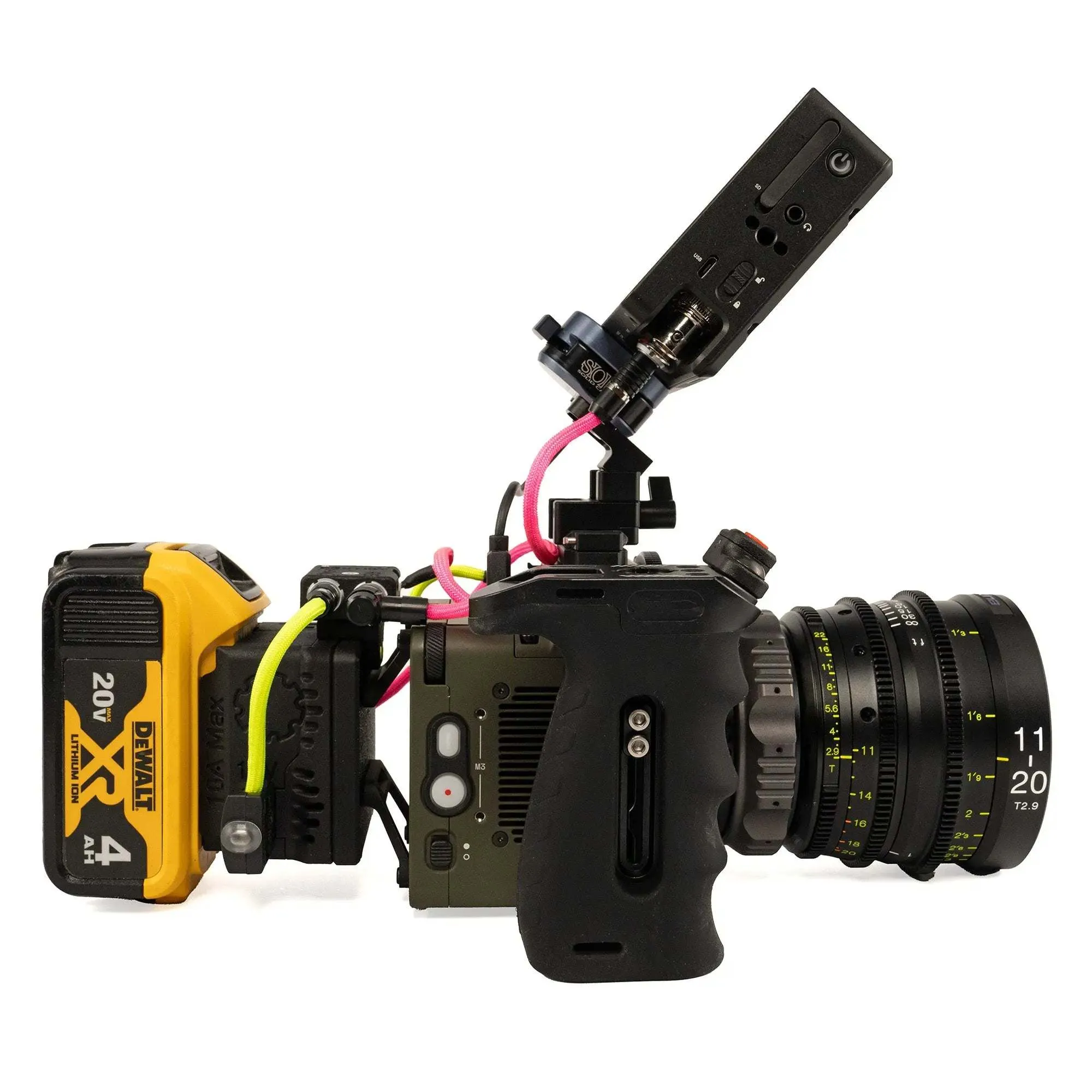

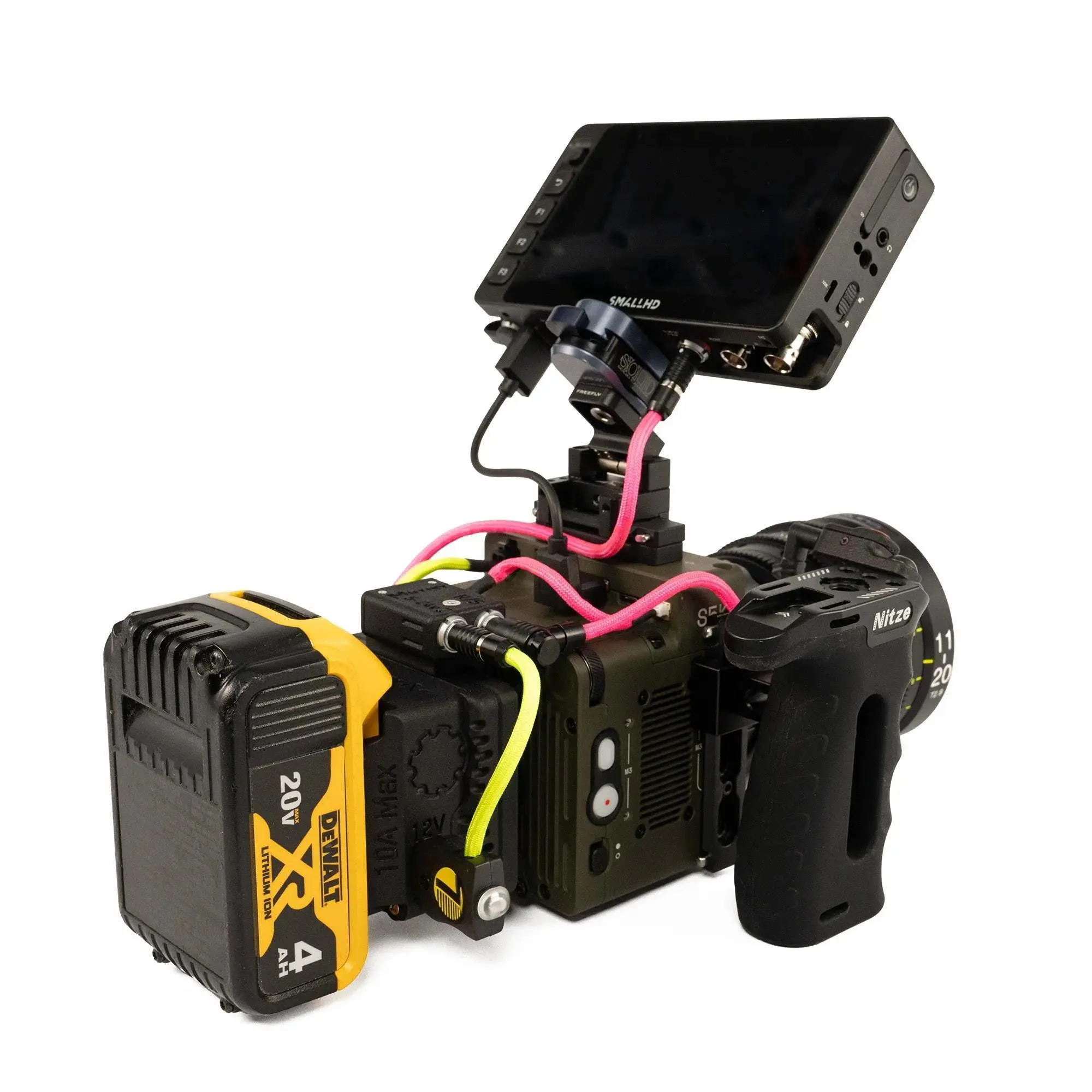

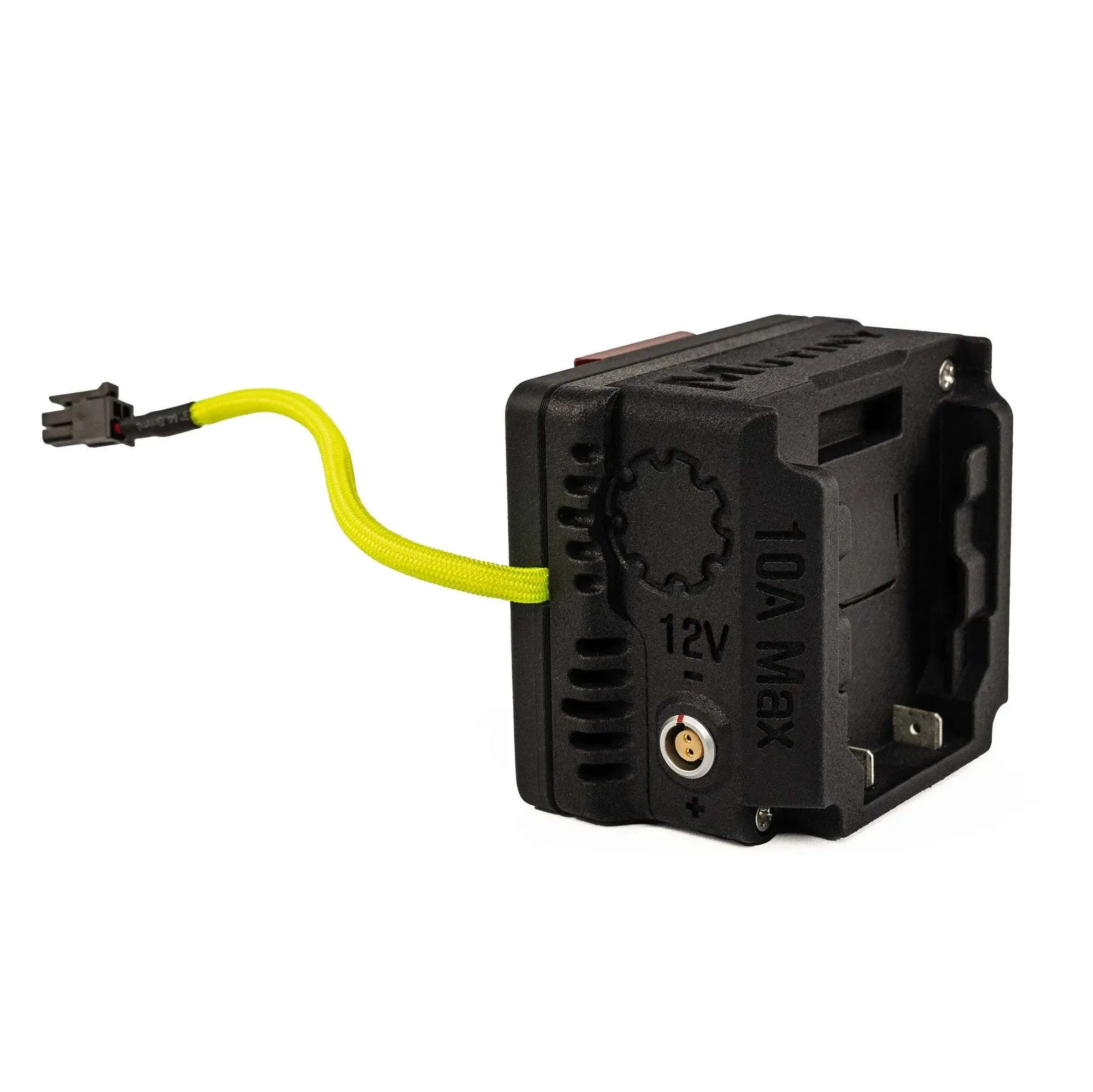

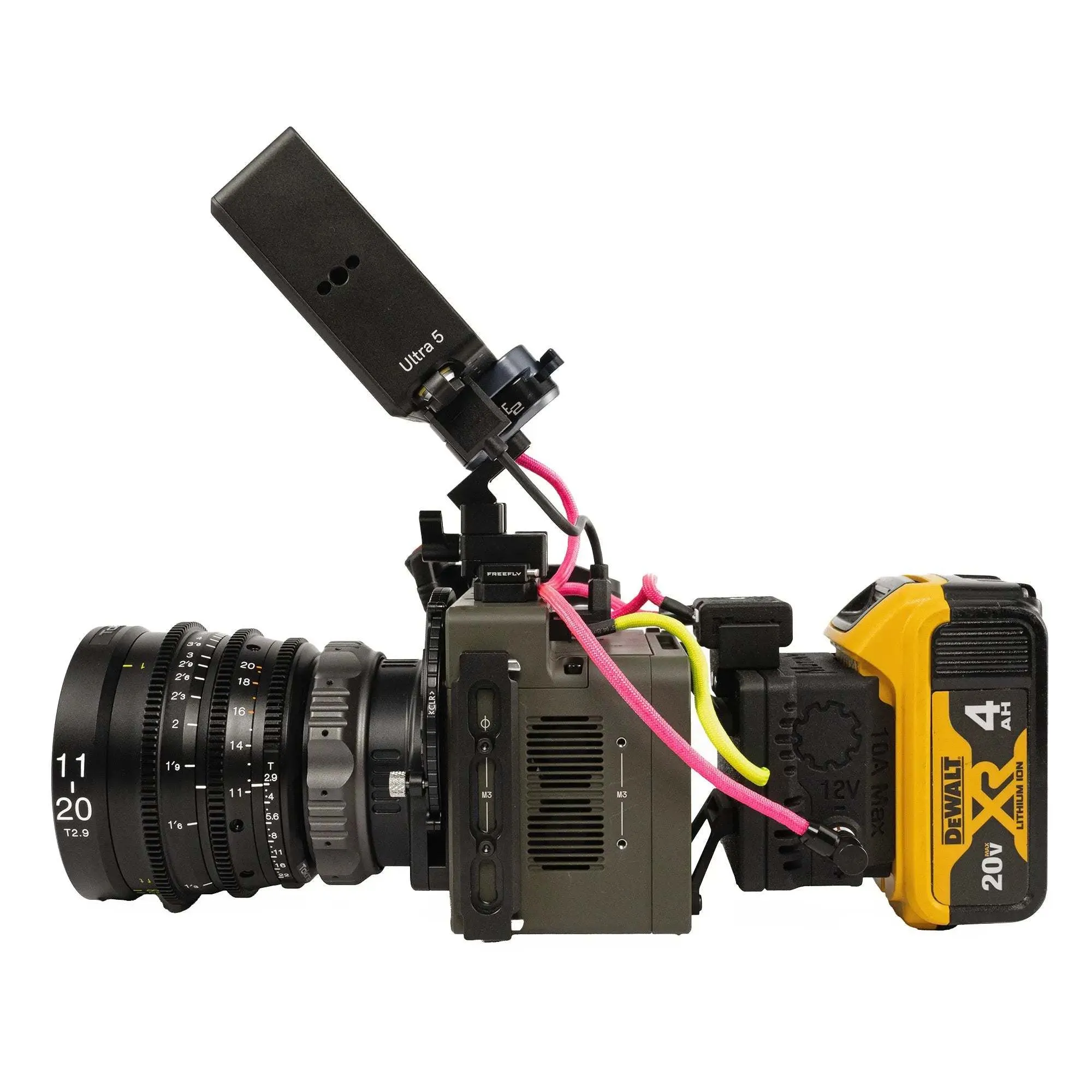

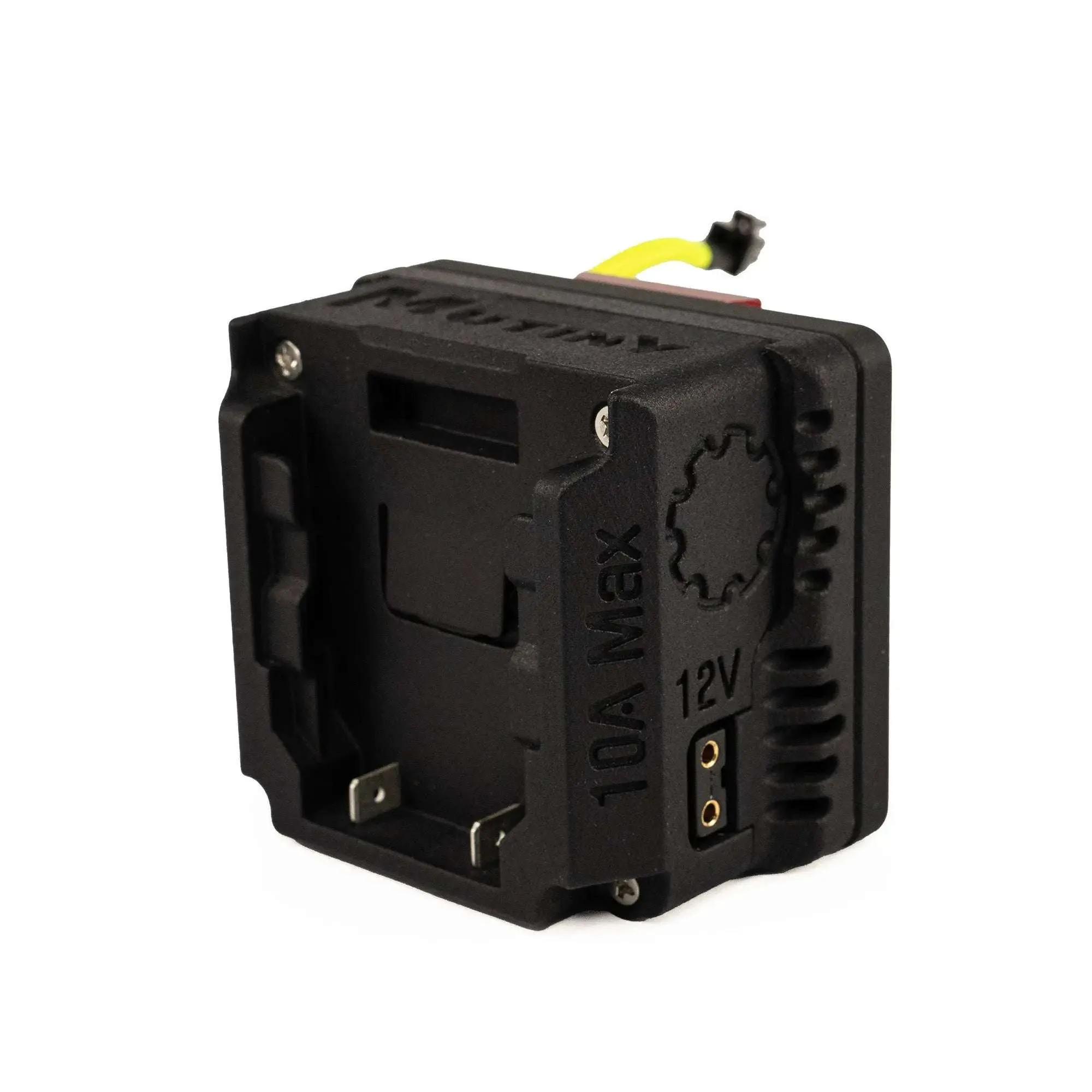

Our DeWalt Max battery plate mounts directly to the rear stand off mounts of the Ember or can mount to your v-mount plate. The Max adapter has a built in 4pin Molex power cable, a D-Tap and a 2pin 0B lemo type output. All outputs are power regulated to 16v with a 10amp maximum current draw. The Max adapter works with all DeWalt 20v max and flex volt batteries.

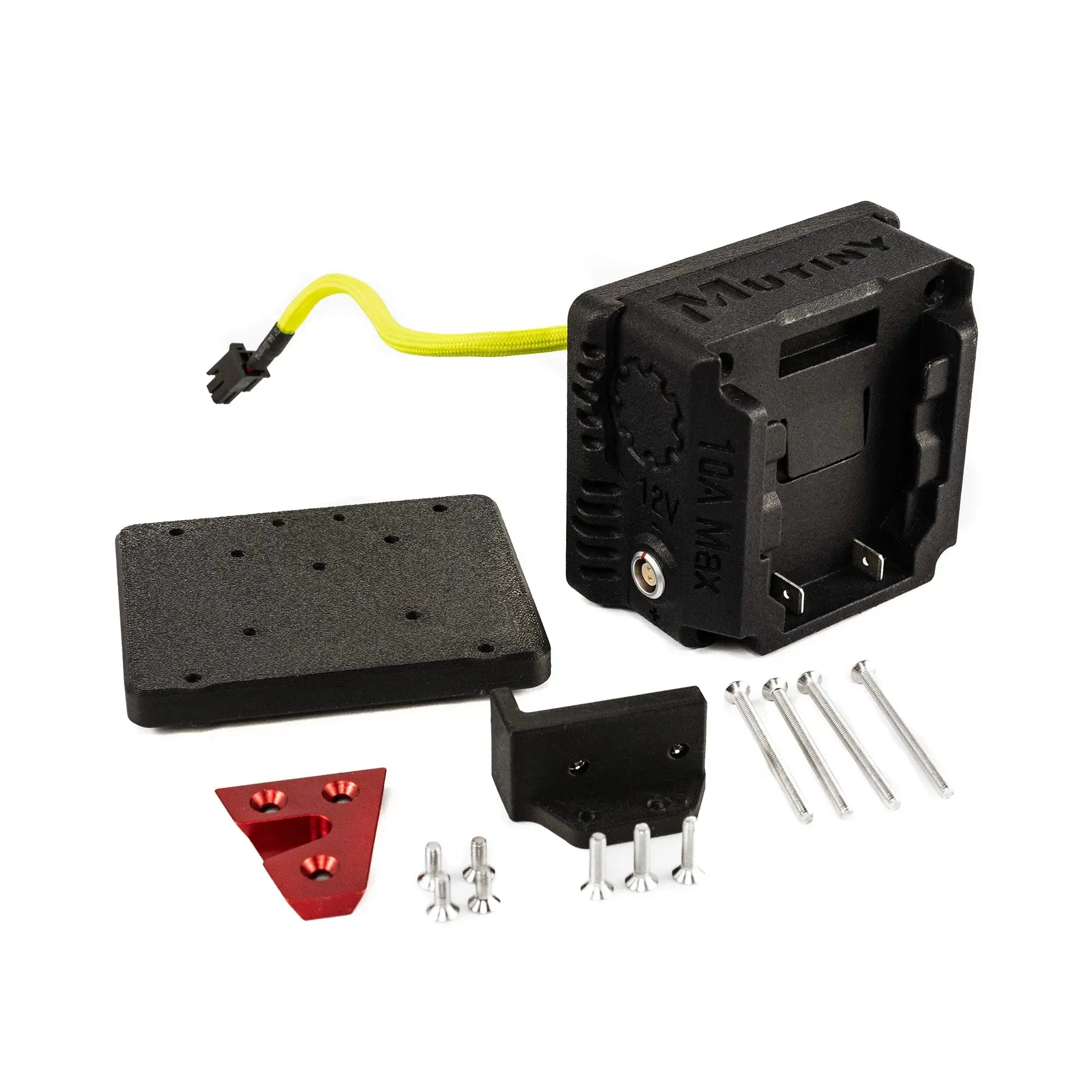

Included in the kit:

DeWalt Max Battery Plate with Molex 4pin cable and 4x mounting screws

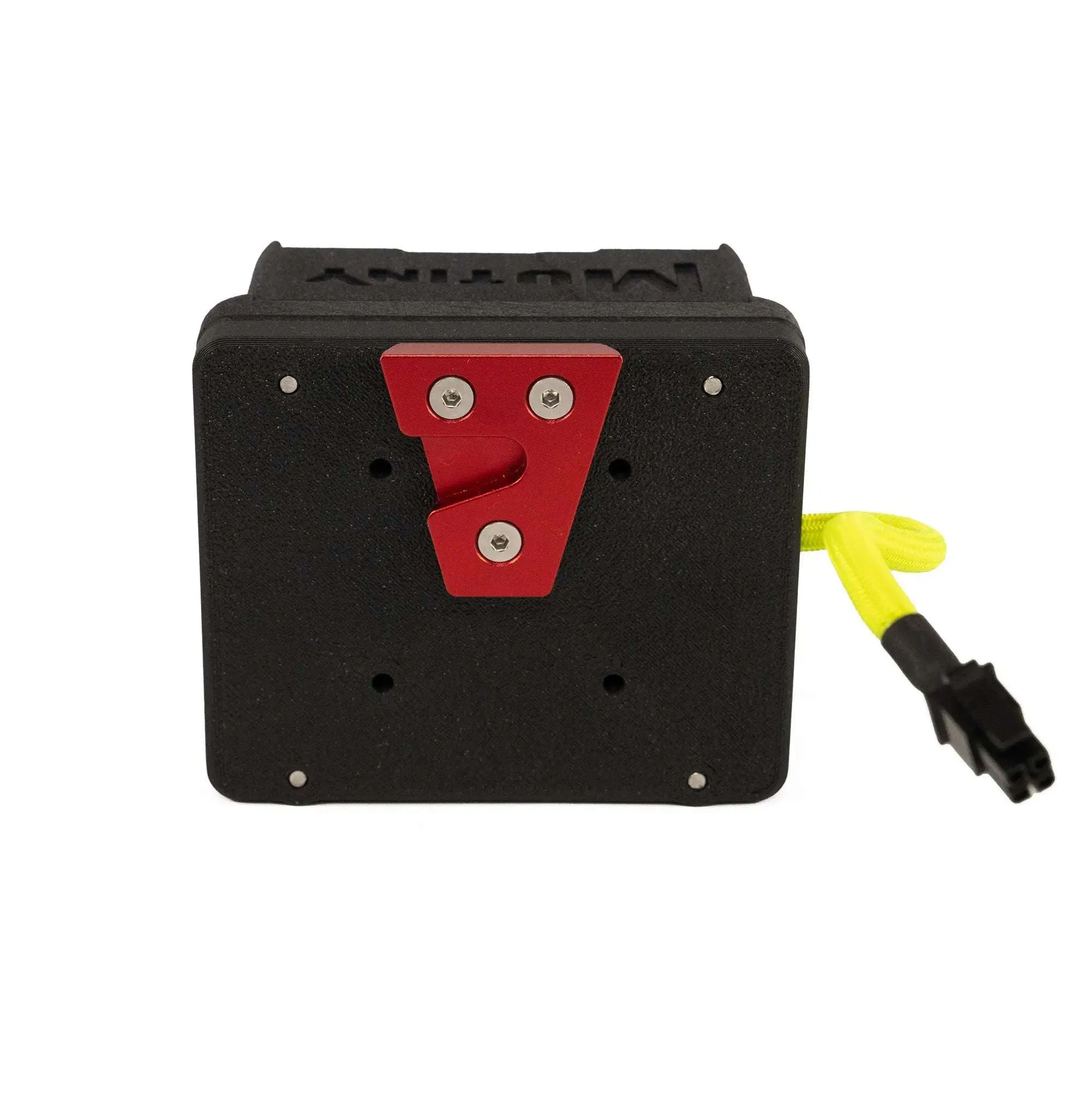

Backer plate (mounts to standoffs and allows mounting of V wedge

V Wedge with screws

Trigger mounting plate with screws

To calculate battery time with your camera and accessoriesuse this equation:

Discharge Time = Battery Capacity (Ah) x Battery Voltage (V) Divided by Wattage of the Device you want to use with it.

1.5Ah battery is 30Wh

2Ah battery is 40Wh

3Ah battery is 60Wh

4Ah battery is 80Wh

5Ah battery is 100Wh

DeWalt Max FlexVolt 20V/60V Batteries* **

6Ah battery is 120Wh *

9Ah battery is 180Wh*

12Ah battery is 240Wh*

*When using 20/60V Max FlexVolt batteries, our adapterpulls 20V not 60V.
